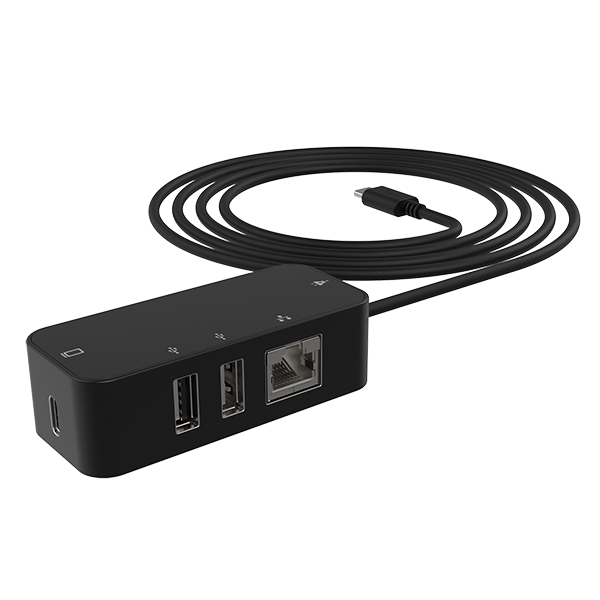

USB-C Hub
USB-C hub for power, Ethernet, and peripheral connectivity
Device Overview
The USB-C Hub provides power delivery, Ethernet connectivity, and USB-A peripheral connections for supported counter setups. It is commonly used where card readers, tablets, scanners, and wired network connections need to work together at a fixed service point.
Pricing
| Item | Price |
|---|---|
| USB-C Hub | £29.00 + VAT |
Best for: Fixed POS stations that need Ethernet, power delivery, and connected USB accessories.
Key Specifications
| Specification | Details |
|---|---|
| Communication Interface | USB 2.0 and non-POE LAN 10/100M |
| Upstream | 1 USB-C port |
| Downstream | 2 USB-A ports and 1 RJ45 Ethernet port |
| Power Connection | 6 ft cable with USB-C plug |
| USB-C Output | PD 9V, 12W |
| USB-C Plug Input | PD 9V, 20W |
| USB-A Output | 5V +/-5%, 2.5W |
| Dimensions | 81.8 x 35 x 24 mm |
| Weight | Approx. 85 g |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90%, non-condensing |
Typical Uses
- Power delivery and data transfer to supported readers
- Ethernet connection for fixed checkout points
- USB-A peripheral connection for accessories such as scanners
- Cleaner counter installations where multiple accessories are connected
